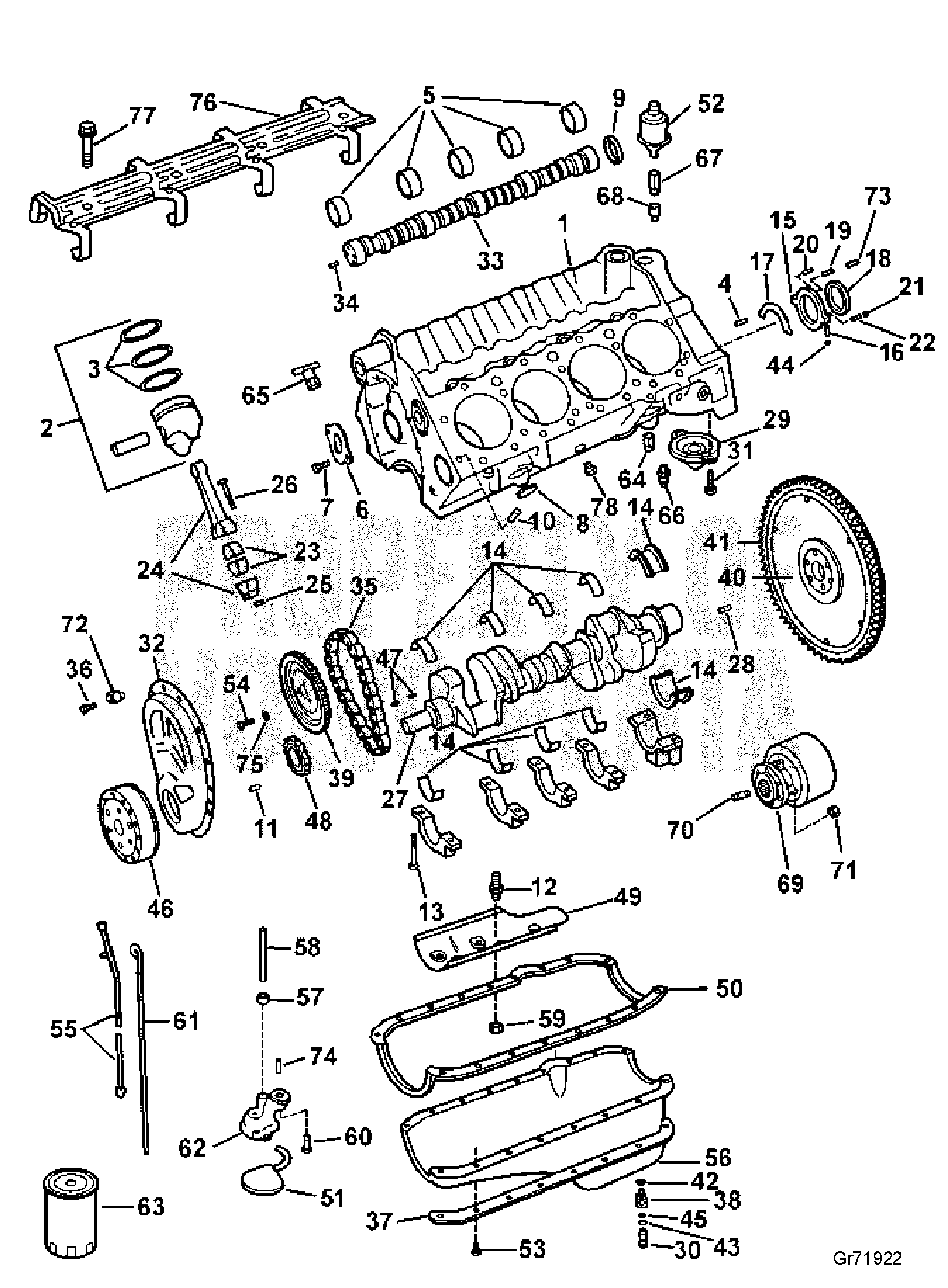

Start page Exploded views Marine Gasoline Engines 5.0GIPEFS Engine Crankcase And Oil Pan

5.0GIPEFS

Crankcase And Oil Pan

M-G5-A_JVC

Name Quantity Status Price Incl VAT
1
Longblock

3857520

5.0

X
Out of production
2
Piston, 0.030 in os

3857669

5.0; as required, Obsolete part

1
Out of production
2
Piston, 0.005 in os

3857668

Obsolete part, 5.0; as required

1
Out of production
2
Piston, standard

3857667

5.0

8
Out of production
3
Piston ring kit, 0.030 in os

3857672

5.0; 0.76mm

1
Out of production
3
Piston ring kit, standard

3857670

5.0

8
Out of production
4
Pin, flywheel housing location

3856001

2
Out of production
5
Kit, camshaft

3856162

Obsolete part

1
Out of production
6
Retainer, camshaft

3855998

1
Out of production
7
Screw, camshaft retainer

3853172

2
Out of production
8
Core plug, expansion

3852100

8
Out of production
9
Core plug, rear camshaft bearing

3853209

1
Out of production
10
Locating pin, cylinder head

3853114

4
Out of production
11
Pin, timing cover

3855972

2
Out of production
12
Stud, bearing cap

3856146

5
Out of production
13
Bolt, bearing cap

3853214

10
Out of production
14
Bearing, main, 0.010 in os

3856155

Obsolete part

1
Out of production
14
Bearing, main, standard

3856154

Obsolete part

1
Out of production
14
Bearing, main, 0.020 in os

3856156

Obsolete part

1
Out of production
15
Housing, rear oil seal

3856925

1
Out of production
16
Stud, rear oil seal retainer

3853202

2
Out of production
17
Gasket, rear oil seal housing

3852656

1
Out of production
18
Seal, oil, rear

3856926

1
Out of production
19
Bolt, rear oil seal, 1.75 in

3853204

44.5mm

1
Out of production
20
Bolt, rear oil seal, 0.875 in

3853203

22.57mm

2
Out of production
21
Nut, rear oil seal housing

3853206

1
Out of production
22
Stud, rear oil seal housing

3853205

1
Out of production
23
Bearing, rod, standard

3853149

8
Out of production
23
Bearing, rod, 0.020 in os

3853153

Obsolete part

X
Out of production
23
Bearing, rod, 0.010 in os

3856117

X
Out of production
24
Connecting rod

3853957

8
Out of production
25
Nut, connecting rod

3853148

16
Out of production
26
Bolt, connecting rod

3853162

16
Out of production
27
Crankshaft

3856923

Obsolete part

1
Out of production
28
Pin, flywheel

3855969

1
Out of production
29
Valve

3852219

Obsolete part

1
Out of production
30
Retainer

3850822

1
Out of production
31
Screw, adapter to engine

3852133

2
Out of production
32
Timing gear cover

3856594

1
Out of production
33
Camshaft

3856119

1
Out of production
34
Pin, cam sprocket

3855972

1
Out of production
35
Chain

3852685

1
Out of production
36
Screw, timing cover, center of cover

3855736

Obsolete part

2
Out of production
36
Screw, timing cover

3855737

6
Out of production
37
Reinforcement, oil pan; port

3856120

1
Out of production
37
Reinforcement, oil pan; stbd

3856121

1
Out of production
38
Fitting, oil pan drain

3855112

1
Out of production
39
Sprocket, camshaft

3856114

1
Out of production
40
Flywheel

3853958

1
Out of production
41
Gear, flywheel

3855970

1
Out of production
42
Washer, fitting to oil pan

3851981

1
Out of production
43
Washer, retainer, oil pan drain

3852007

1
Out of production
44
Nut, seal housing

3856930

4
Out of production
45
O-ring, retainer, oil pan drain

3853674

1
Out of production
46
Vibration damper

3856924

1
Out of production
47
Woodruff key, crankshaft

3852663

2
Out of production
48
Sprocket, crankshaft

3852690

1
Out of production
48
Plug, water drain, block

3850740

Not shown

1
Out of production
49
Baffle, oil pan

3852744

1
Out of production
50
Gasket kit, oil pan

3856138

1
Out of production
51
Strainer, oil pump

3856126

1
Out of production
52
Oil pressure sensor, oil pressure

3857532

1
Out of production
53
Bolt, oil pan

3852595

14
Out of production
54
Bolt, camshaft sprocket

3853173

3
Out of production
55
Gauge

3850474

1
Out of production
56
Sump

3857778

1
Out of production
57
Retainer, oil pump shaft

3853199

1
Out of production
58
Shaft

3853198

1
Out of production
59
Nut, oil baffle

3857664

5
Out of production
60
Bolt, oil pump

3853234

2
Out of production
61
Tube

3860402

Obsolete part, Gi/GSi

1
Out of production
61
Tube

3850249

GL/GS

1
Out of production
62
Oil Pump

3856125

1
Out of production
63
Filter

3850559

1
Out of production
64
Fitting, oil pressure switch

3850660

Gi/GSi

1
Out of production
65
Fitting, drain, knock sensor

3850490

Gi/GSi

1
Out of production
66
Sensor, oil pressure

3852215

Gi/GSi

1
Out of production
67
Elbow, oil sender

3852503

1
Out of production
68
Adapter, oil sender

3855776

1
Out of production
69
Rubber coupling

3858437

1
Out of production
70
Stud, coupler to flywheel

3853274

6
Out of production
71
Nut, stud, coupler to stud

3853273

6
Out of production
71
Stud, oil pan

3853202

Not shown

2
Out of production
72
Grommet, timing cover

3855739

8
Out of production
73
Pin, rear oil seal housing

3856140

1
Out of production
74
Pin, oil pump location

3855972

2
Out of production
75
Washer, bolt, cam sprocket

3856151

3
Out of production
76
Retainer, lifter guide

3856144

1
Out of production
77
Screw, lifter guide retainer

3853171

3
Out of production
78
Plug, water drain, block

3850740

1
Out of production
